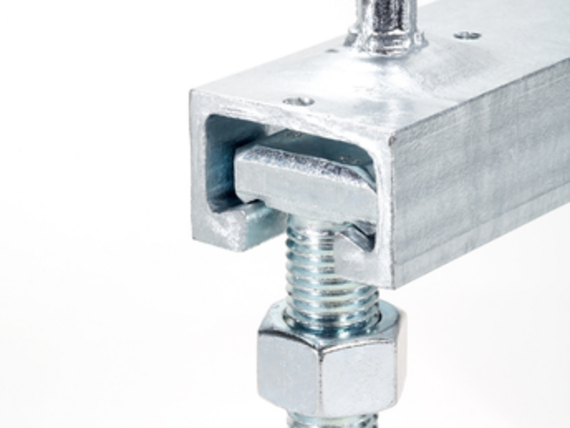

The hot-rolled anchor channels JTA W together with the appropriate JORDAHL® T-head bolts and JORDAHL® accessories create a versatile and proven connection system. They are cast into concrete and transfer high loads reliably in reinforced and non-reinforced concrete structural components and absorb tensile and transverse pull loads at right angles to the axis of the channel.
Material
With effective corrosion protection. Available in hot-dip galvanised steel or stainless steel (A4). Standard filling of polyethylene (PE) or polystyrene (PS).
Load Groups
Available in five different types of cross-section. Can be delivered in any length up to 6 metres. Static load-bearing capacity up to 58 kN service load (81 kN design resistance).
Solutions
Curved anchor channels, anchor channel pairs, anchor channel corner pieces. Production of special profiles on request.

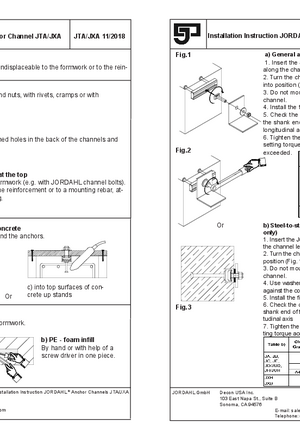

Assembly Instruction
Advantages
- Quick, efficient and versatile fastening of high loads
- Simple compensation of building tolerances
- No damage to the components by drilling
- Reduced construction time by using simple hand tools
- Small edge spacings possible
- Simple, individual options for application and reusability of the fastening
- Resistant to fatigue, seismic activities, explosions
- Optimized geometry with strengthened channel lips for high tightening torques
- Approved for installation in components with fire safety requirements
Stadium Solutions
ESR-2854 LABC and LARC Supplement
JORDAHL® Anchor Channels ICC-ES ESR-2854
JORDAHL® Anchor Channels JTA and JXA

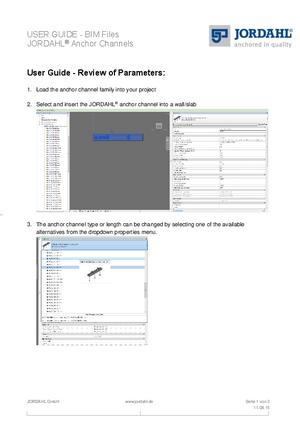

Benutzerhandbuch - BIM-Dateien (Englisch)
